JSR-TH150 series through hole conductive slip ring



JSR-TH150 series through hole conductive slip ring

JSRJSR-TH150 series through hole conductive slip ring, perforated diameter 150mm(applicable to any 248mm, number of channels: 1-108, aluminum alloy structure of the whole precision conductive slip ring. Support Signal (2A) or, or 10A, 15A, 30A supply current, voltage 380VAC/24VDC, working voltage can be customized up to 1000V; The protection level can be customized to IP65/IP68

ID：150mm OD：248mm Circuits：1-108 Voltage：220/380V

download：

instructions 3D model

Skype

Info@szjarch.cn

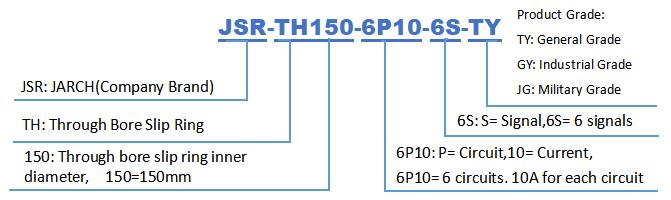

MODEL SPECIFICATION

MODEL

Product Grade Select Sheet

SELECTION

Product Grade	Max Speed	Working Life	Contact Materail
TY(General Grade)	250RPM	20000000turns	Precious Material
GY（Industrila Grade）	600RPM	60000000turns	Gold Plate-Gold Plate
JG（Military Grade）	1000RPM	150000000turns	Gold Alloy

Technical Specification Parameters

PARAMETER

Electrical Specification Parameters
Electrical Parameters		Signal Parameters
Parameters	value	Parameters	value
Rated Voltage	0-380VAC/VDC	Rated Voltage	0-380VAC/VDC
insulation resistance	≥1000MΩ/500VDC	insulation resistance	≥500MΩ/500VDC
Wire specifications	AWG16#Galvanized teflon	Wire specifications	AWG22Galvanized teflon
Rated Current	Currrent for each circuit is optional
Electric Noise	10mΩ@6VDC,50mA,5Rpm
Dynamic resistance change	＜0.01Ω
Mechanical technical parameters
Mechanical Parameters		Enviroment Parameters
specification	value	specification	Value
Working Life	＞50000000 turns	Working Temperature	-30C°-80C°
Rated Voltage	300MRP（Optional）	Working Humidity	0-85%RH
Contact Material	Precious Material(Optional）	Mechanical Vibration	MIL-SID-810E
Shell Material	Aluminium alloy (anodized)	Protect Grade	IP51(Options:IP65、IP68)
Rotational Torque	0.1N.M;+0.03N.M/Circuit

DRAWING

Standard Products Selection Sheet

SELECTION

Standard Products Selection Sheet
TH150 Series-Through Hole Slip Ring Selection Sheet
Style NO.	10A	Signal or 5A	L(MM)	Style NO.	10A	Signal or 5A	L(MM)
JSR-TH150-2S	0	2	69.5	JSR-TH150-36S	0	36	239.5
JSR-TH150-2P10	2	0	69.5	JSR-TH150--6P10-30S	6	30	239.5
JSR-TH150-3S	0	3	74.5	JSR-TH150-12P10-24S	12	24	239.5
JSR-TH150-3P10	3	0	74.5	JSR-TH150-36P10	36	0	239.5
JSR-TH150-6S	0	6	89.5	JSR-TH150-42S	0	42	269.5
JSR-TH150-2P10-4S	2	4	89.5	JSR-TH150-6P10-36S	6	36	269.5
JSR-TH150-4P10-2S	4	2	89.5	JSR-TH150-12P10-30S	12	30	269.5
JSR-TH150-6P10	6	0	89.5	JSR-TH150-42P10	42	0	269.5
JSR-TH150-12S	0	12	119.5	JSR-TH150-48S	0	48	299.5
JSR-TH150-2P10-10S	2	10	119.5	JSR-TH150-6P10-42S	6	42	299.5
JSR-TH150-3P10-9S	3	9	119.5	JSR-TH150-12P10-36S	12	36	299.5
JSR-TH150-6P10-6S	6	6	119.5	JSR-TH150-18P10-30S	18	30	299.5
JSR-TH150-8P10-4S	8	4	119.5	JSR-TH150-P24P10-24S	24	24	299.5
JSR-TH150-10P10-2S	10	2	119.5	JSR-TH150-4810	48	0	299.5
JSR-TH150-12P10	12	0	119.5	JSR-TH150-60S	0	60	359.5
JSR-TH150-18S	0	18	149.5	JSR-TH150-6P10-54S	6	54	359.5
JSR-TH150-2P10-16S	2	16	149.5	JSR-TH150-9P10-51S	9	51	359.5
JSR-TH150-4P10-14S	4	14	149.5	JSR-TH150-12P10-48S	12	48	359.5
JSR-TH150-6P10-12S	6	12	149.5	JSR-TH150-24P10-36S	24	36	359.5
JSR-TH150-8P10-10S	8	10	149.5	JSR-TH150-72S	0	72	419.5
JSR-TH150-10P10-08S	10	8	149.5	JSR-TH150-12P10-60S	12	60	419.5
JSR-TH150-12P10-6S	12	6	149.5	JSR-TH150-24P10-48S	24	48	419.5
JSR-TH150-14P10-4S	14	4	149.5	JSR-TH150-36P10-36S	36	36	419.5
JSR-TH150-16P10-2S	16	2	149.5	JSR-TH150-84S	0	84	479.5
JSR-TH150-24S	0	24	179.5	JSR-TH150-12P10-72S	12	72	479.5
JSR-TH150-4P10-20S	4	20	179.5	JSR-TH150-24P10-60S	24	60	479.5
JSR-TH150-6P10-18S	6	18	179.5	JSR-TH150-36P10-48S	36	48	479.5
JSR-TH150-12P10-12S	12	12	179.5	JSR-TH150-96S	0	96	539.5
JSR-TH150-18P10-6S	18	6	179.5	JSR-TH150-12P10-84S	12	84	539.5
JSR-TH150-24P10	24	0	179.5	JSR-TH150-24P10-72S	24	72	539.5
JSR-TH150-30S	0	30	209.5	JSR-TH150-36P10-60S	36	60	539.5
JSR-TH150-6P10-24S	6	24	209.5	JSR-TH150-42P10-54S	42	54	539.5
JSR-TH150-12P10-18S	12	18	209.5	JSR-TH150-108S	0	108	599.5
JSR-TH150-18P10-12S	18	12	209.5	JSR-TH150-12P10-96S	12	96	599.5
JSR-TH150-24P10-6S	24	6	209.5	JSR-TH150-24P10-84S	24	84	599.5
JSR-TH150-3010	30	0	209.5	JSR-TH150-36P10-72S	36	72	599.5
Note: Many 5A current rings together can be used as 1 channel N*5A current ring; For example: 2 ring 5A and up as 1 channel 10A use. The above models are part of this specification. If you need other specifications, please contact us directly。

Wire Color for Each Circuit

COLOR CODE SHEET

Circuit	Color	Circuit	Color
1	black	7	purple
2	red	8	grey
3	yellow	9	orange
4	green	10	brown
5	blue	11	pure
6	white	12	light green
(Note: 12 colors are a group, serial number 1...12, the next group repeat the first 12 colors, each group with number tube as the group number identification.)

INSTALLATION

OPTIONAL

Note: the following special requirements can be customized, the delivery time will increase by 3-15 days, the cost will increase by 5%-50%, Most basic parts are standard and module in our company,This can also greatly reduce the cost and delivery time of customized slip ring.

① The outlet mode and outlet length of rotor and stator can be customized.

② Due to the limitation of the structure, it can be customized according to the specified length or height or outer diameter.

③ The maximum power current or signal of 200 channels can be supported.

④ Optional aviation plug, terminal and heat shrinkable tube.

⑤ Yakawa, Panasonic, Siemens and other servo system signal, power line and encoder line hybrid slip ring.

⑥ High speed data transmission can be mixed(including Ethernet,USB, PROFIBUS, PROFINET, EtherCAT, CANOPEN, CANBUS, CC-LINK, RS232, RS485 and other industrial buses).

⑦ Temperature control signal, thermocouple signal mixing.

⑧ Shockproof, high temperature and other special environment customization.

⑨ It can be mixed with pneumatic and hydraulic rotary joint as an electric pneumatic hydraulic slip ring.

⑩ High frequency and low frequency can be customized, joint type can be customized.

⑪ High frequency power can be customized

⑫ The number of channels can be customized

⑬ The maximum current is 5000 amperes (A).

⑭ Military industrial class.

⑮ Navigation, optional underwater mode, IP65,IP68 optional.

⑯ Stainless steel housing requirements.

RANGE

Drilling Rig

A drilling rig is an offshore structure mainly used for drilling Wells. The platform is equipped with drilling, power, communication, navigation and other equipment, as well as life saving and personnel living facilities, which is an indispensable means for offshore oil and gas exploration and development. The normal operation of the drilling platform is inseparable from the credit of the conductive slip ring. Many rotating parts of the drilling platform need to use the conductive slip ring. The conductive slip ring can smoothly transmit the current and various signals required by various parts of the drilling platform in the process of rotation, so as to ensure the normal operation of each part of the drilling platform.

钻井平台

Winding Machine

A winding machine is a device for winding a threadlike object onto a specific piece of work. It is usually used for winding copper wire and yarn. Slip ring as a key equipment to solve the rotary winding equipment has been widely used in the winding machine, winding machine also because of the emergence of slip ring has been rapid development, slip ring as the core equipment can transmit current and signal in the rotation at the same time in the winding machine has a pivotal role.

绕线机

Playground Equipment

A playground is a place where children and citizens can play freely. Large amusement parks will be built with super pendulum, Ferris wheel, carousel and other large-scale facilities. These games help children develop cooperative skills, strengthen their bodies and learn social skills. They also provide entertainment and enjoyment. Conductive slip ring is widely used in all kinds of amusement equipment because it can rotate 360 degrees and transmit current, signal, gas and other substances continuously.

游乐设备
