JSR-TH180 series through hole conductive slip ring
site： home Product CenterfunctionLarge Diameter Slip Rings
JSR-TH180 series through hole conductive slip ring
JSR-TH180 series through hole conductive slip ring
JSR-TH180 series through hole conductive slip ring
video

JSR-TH180 series through hole conductive slip ring

JSR-TH180 series through hole conductive slip ring, perforated diameter 180mm(applicable to any 290mm, number of channels: 1-108, aluminum alloy structure of the whole precision conductive slip ring. Support Signal (2A) or, or 10A, 15A, 30A supply current, voltage 380VAC/24VDC, working voltage can be customized up to 1000V; The protection level can be customized to IP65/IP68

ID：180mm OD：290mm Circuits：1-108 Voltage：220/380V

download：

instructions 3D model
Skype

MODEL SPECIFICATION

MODEL


Product Grade Select Sheet

SELECTION

Product Grade

Max Speed

Working Life

Contact Materail

TY(General Grade)

250RPM

20000000turns

Precious Material

GY（Industrila Grade）

600RPM

60000000turns

Gold Plate-Gold Plate

JG（Military Grade）

1000RPM

150000000turns

Gold Alloy

Technical Specification Parameters

PARAMETER

Electrical Specification Parameters
Electrical ParametersSignal Parameters

Parameters

valueParametersvalue
Rated Voltage0-380VAC/VDCRated Voltage0-380VAC/VDC
insulation resistance≥1000MΩ/500VDCinsulation resistance≥500MΩ/500VDC
Wire specificationsAWG16#Galvanized teflonWire specificationsAWG22Galvanized teflon
Rated CurrentCurrrent for each circuit is optional
Electric Noise10mΩ@6VDC,50mA,5Rpm
Dynamic resistance change＜0.01Ω
Mechanical technical parameters
Mechanical ParametersEnviroment Parameters
ParametersvalueParametersValue
Working Life＞50000000 turnsWorking Temperature-30C°-80C°
Rated Voltage300MRP（Optional）Working Humidity0-85%RH
Contact MaterialPrecious Material(Optional）Mechanical VibrationMIL-SID-810E
Shell MaterialAluminium alloy (anodized)Protect GradeIP51(Options:IP65、IP68)
Rotational Torque0.1N.M;+0.03N.M/Circuit

DRAWING


Standard Products Selection Sheet

SELECTION

Standard Products Selection Sheet

TH180 Series-Through Hole Slip Ring Selection Sheet

Style NO.

10A

Signal or 5A

L(MM)

Style NO.

10A

Signal or 5A

L(MM)

JSR-TH180-2S

0

2

85.3

JSR-TH180-36S

0

36

255.3

JSR-TH180-2P10

2

0

85.3

JSR-TH180--6P10-30S

6

30

255.3

JSR-TH180-3S

0

3

90.3

JSR-TH180-12P10-24S

12

24

255.3

JSR-TH180-3P10

3

0

90.3

JSR-TH180-36P10

36

0

255.3

JSR-TH180-6S

0

6

105.3

JSR-TH180-42S

0

42

285.3

JSR-TH180-2P10-4S

2

4

105.3

JSR-TH180-6P10-36S

6

36

285.3

JSR-TH180-4P10-2S

4

2

105.3

JSR-TH180-12P10-30S

12

30

285.3

JSR-TH180-6P10

6

0

105.3

JSR-TH180-42P10

42

0

285.3

JSR-TH180-12S

0

12

135.3

JSR-TH180-48S

0

48

315.3

JSR-TH180-2P10-10S

2

10

135.3

JSR-TH180-6P10-42S

6

42

315.3

JSR-TH180-3P10-09S

3

9

135.3

JSR-TH180-12P10-36S

12

36

315.3

JSR-TH180-6P10-6S

6

6

135.3

JSR-TH180-18P10-30S

18

30

315.3

JSR-TH180-8P10-4S

8

4

135.3

JSR-TH180-24P10-24S

24

24

315.3

JSR-TH180-10P10-2S

10

2

135.3

JSR-TH180-48P10

48

0

315.3

JSR-TH180-12P10

12

0

135.3

JSR-TH180-60S

0

60

375.3

JSR-TH180-18S

0

18

165.3

JSR-TH180-6P10-54S

6

54

375.3

JSR-TH180-2P10-16S

2

16

165.3

JSR-TH180-9P10-51S

9

51

375.3

JSR-TH180-4P10-14S

4

14

165.3

JSR-TH180-12P10-48S

12

48

375.3

JSR-TH180-6P10-12S

6

12

165.3

JSR-TH180-24P10-36S

24

36

375.3

JSR-TH180-8P10-10S

8

10

165.3

JSR-TH180-72S

0

72

435.3

JSR-TH180-10P10-08S

10

8

165.3

JSR-TH180-12P10-60S

12

60

435.3

JSR-TH180-12P10-6S

12

6

165.3

JSR-TH180-24P10-48S

24

48

435.3

JSR-TH180-14P10-4S

14

4

165.3

JSR-TH180-36P10-36S

36

36

435.3

JSR-TH180-16P10-2S

16

2

165.3

JSR-TH180-84S

0

84

495.3

JSR-TH180-24S

0

24

195.3

JSR-TH180-12P10-72S

12

72

495.3

JSR-TH180-4P10-20S

4

20

195.3

JSR-TH180-24P10-60S

24

60

495.3

JSR-TH180-6P10-18S

6

18

195.3

JSR-TH180-36P10-48S

36

48

495.3

JSR-TH180-12P10-12S

12

12

195.3

JSR-TH180-96S

0

96

555.3

JSR-TH180-18P10-6S

18

6

195.3

JSR-TH180-12P10-84S

12

84

555.3

JSR-TH180-24P10

24

0

195.3

JSR-TH180-24P10-72S

24

72

555.3

JSR-TH180-30S

0

30

225.3

JSR-TH180-36P10-60S

36

60

555.3

JSR-TH180-6P10-24S

6

24

225.3

JSR-TH180-42P10-54S

42

54

555.3

JSR-TH180-12P10-18S

12

18

225.3

JSR-TH180-108S

0

108

615.3

JSR-TH180-18P10-12S

18

12

225.3

JSR-TH180-12P10-96S

12

96

615.3

JSR-TH180-24P10-6S

24

6

225.3

JSR-TH180-24P10-84S

24

84

615.3

JSR-TH180-30P10

30

0

225.3

JSR-TH180-36P10-72S

36

72

615.3

 Note: Many 5A current rings together can be used as 1 channel N*5A current ring; For example: 2 ring 5A and up as 1 channel 10A use. The above models are part of this specification.

 If you need other specifications, please contact us directly。

Wire Color for Each Circuit



COLOR CODE SHEET

CircuitColorCircuitColor
1black7purple
2red8grey
3yellow9orange
4green10brown
5blue11pure
6white12light green
(Note: 12 colors are a group, serial number 1...12, the next group repeat the first 12 colors, each group with number tube as the group number identification.)

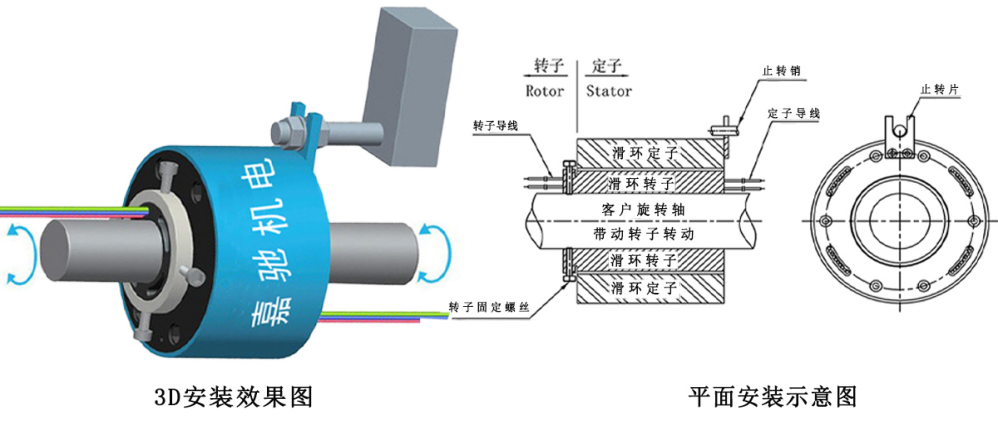

INSTALLATION



OPTIONAL

Note: the following special requirements can be customized, the delivery time will increase by 3-15 days, the cost will increase by 5%-50%, Most basic parts are standard and module in our company,This can also greatly reduce the cost and delivery time of customized slip ring.

① The outlet mode and outlet length of rotor and stator can be customized.

② Due to the limitation of the structure, it can be customized according to the specified length or height or outer diameter.

③ The maximum power current or signal of 200 channels can be supported.

④ Optional aviation plug, terminal and heat shrinkable tube.

⑤ Yakawa, Panasonic, Siemens and other servo system signal, power line and encoder line hybrid slip ring.

⑥ High speed data transmission can be mixed(including Ethernet,USB, PROFIBUS, PROFINET, EtherCAT, CANOPEN, CANBUS, CC-LINK, RS232, RS485 and other industrial buses).

⑦ Temperature control signal, thermocouple signal mixing.

⑧ Shockproof, high temperature and other special environment customization.

⑨ It can be mixed with pneumatic and hydraulic rotary joint as an electric pneumatic hydraulic slip ring.

⑩ High frequency and low frequency can be customized, joint type can be customized.

⑪ High frequency power can be customized

⑫ The number of channels can be customized

⑬ The maximum current is 5000 amperes (A).

⑭ Military industrial class.

⑮ Navigation, optional underwater mode, IP65,IP68 optional.

⑯ Stainless steel housing requirements.



RANGE

Drilling Rig

A drilling rig is an offshore structure mainly used for drilling Wells. The platform is equipped with drilling, power, communication, navigation and other equipment, as well as life saving and personnel living facilities, which is an indispensable means for offshore oil and gas exploration and development. The normal operation of the drilling platform is inseparable from the credit of the conductive slip ring. Many rotating parts of the drilling platform need to use the conductive slip ring. The conductive slip ring can smoothly transmit the current and various signals required by various parts of the drilling platform in the process of rotation, so as to ensure the normal operation of each part of the drilling platform.

钻井平台


Winding Machine

A winding machine is a device for winding a threadlike object onto a specific piece of work. It is usually used for winding copper wire and yarn. Slip ring as a key equipment to solve the rotary winding equipment has been widely used in the winding machine, winding machine also because of the emergence of slip ring has been rapid development, slip ring as the core equipment can transmit current and signal in the rotation at the same time in the winding machine has a pivotal role.

绕线机

Playground Equipment

A playground is a place where children and citizens can play freely. Large amusement parks will be built with super pendulum, Ferris wheel, carousel and other large-scale facilities. These games help children develop cooperative skills, strengthen their bodies and learn social skills. They also provide entertainment and enjoyment. Conductive slip ring is widely used in all kinds of amusement equipment because it can rotate 360 degrees and transmit current, signal, gas and other substances continuously.
